ULP membrane elements series characteristics: Achieve the desired permeate water and high desalination rate under ultra-low/extreme-low pressure operation conditions.
Application: It is suitable for desalination treatment of surface water, groundwater, tap water and municipal water with salt content less than 2000 ppm.
Catalog:
210715 catalog of RO membranes-Mary Hu-Winder-Chengda.pdf
 | ||

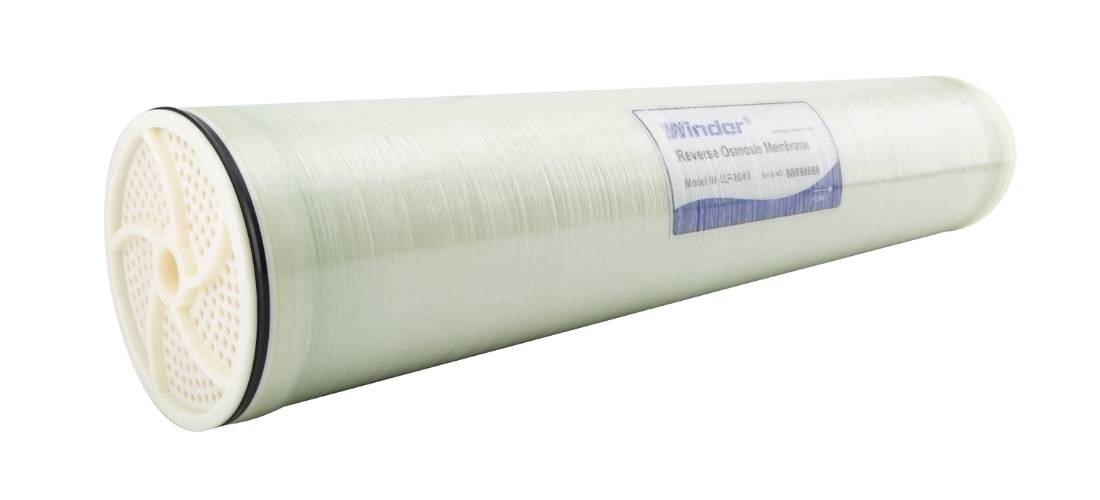

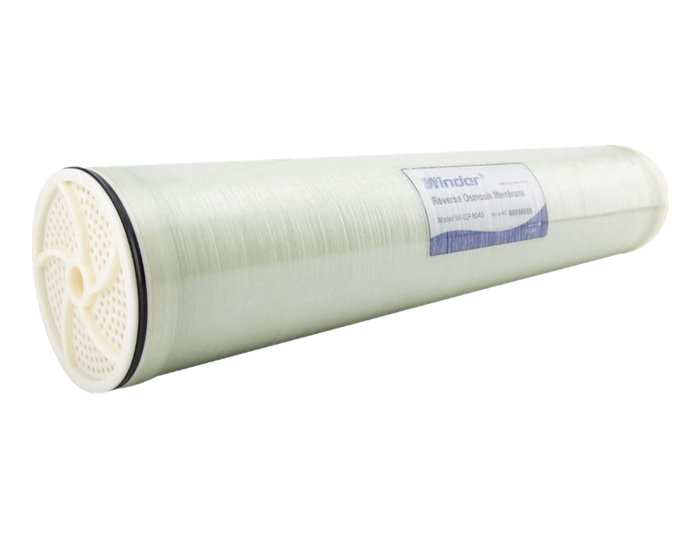

| W-ULP-8040 membrane element | ||
| ULP membrane elements series characteristics: Achieve the desired permeate water and high desalination rate under ultra-low/extreme-low pressure operation conditions. Application: It is suitable for desalination treatment of surface water, groundwater, tap water and municipal water with salt content less than 2000 ppm. | ||
 W-ULP-8040 element series specification diagram | ||
| Specification of W-8040 Membrane Element Series | ||
| Model | W-ULP-8040 | W-BW-8040 |
| Active Membrane Ft²(m2) | 400 (37) | 400 (37) |
| Operational pressure psi (MPa) | 150 (1.03) | 255 (1.55) |
| Average yield GPD (m³/d) | 10500 (39.5) | 10500 (39.5) |
| Salt rejection (%) | 99 | 99.5 |
| Recovery rate (%) | 15 | 15 |
| Max. Operating pressure psi (MPa) | 600 psi (4.1 MPa) | 600 psi (4.1 MPa) |
| Max. inflow temperature (°C) | 45 °C | 45 °C |
| Max. inflow SDI | 5 | 5 |
| Max. water flow GPM (m³/h) | 75 GPM (17 m³/h) | 75 GPM (17 m³/h) |
| Free chlorine concentration | ＜ 0.1 ppm | ﹤ 0.1 ppm |
| PH Range of Feed Water During Continuous Operation | 2–12 | 2–12 |
| Max. single membrane element pressure drop | 15 psi (0.1 MPa) | 15 psi (0.1 MPa) |
| Feed Spacer Thickness(mil) | 31 | 31 |
| Test Solution Concentrate NaCl(ppm) | 1500 | 2000 |
| Chemical Cleaning Water PH Range | 1-13 | 1-13 |
