Filters of different materials suit distinct working conditions in applications including food chemical industry, acid, alkali and salt solution treatment, cooling tower circulating water treatment, and pretreatment of ultrafiltration feed water.
This vertical UPVC filter is fully constructed of UPVC material with excellent corrosion resistance. It is applicable to corrosive water environments where stainless steel or carbon steel equipment cannot be deployed. Equipped with standard PP cotton filter cartridges, it achieves precise solid-liquid filtration and meets diverse anti-corrosion filtration requirements.
Ⅰ.Two series of specifications to cover various flow rate requirements

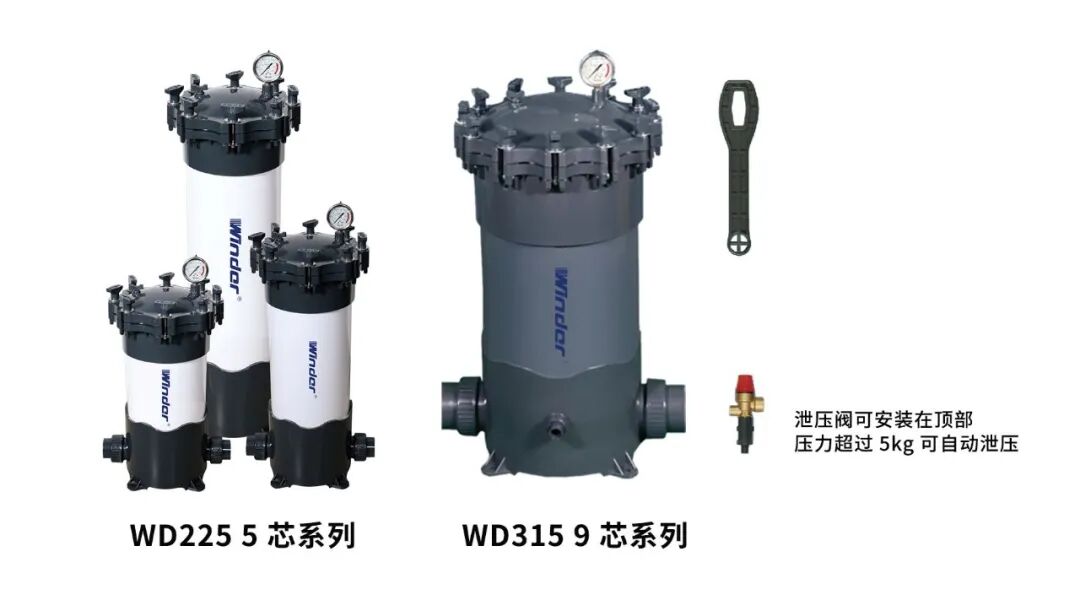

The product consists of two series: WD225 (5-cartridge model) and WD315 (9-cartridge model). Both series accept 10/20/30/40-inch filter cartridges to accommodate working scenarios with various flow rates.
1.WD225 5-Cartridge Series
Cylinder diameter: 255 mm; inlet & outlet port size: 48.5/50; each unit can hold 5 pcs of PP cotton filter cartridges, maximum working pressure: 0.6 MPa.
WD225-10: Height 455 mm, compatible with 10-inch cartridges
WD225-20: Height 710 mm, compatible with 20-inch cartridges
WD225-30: Height 965 mm, compatible with 30-inch cartridges
WD225-40: Height 1220 mm, compatible with 40-inch cartridges
Suitable for small production lines, laboratories and mini circulating water systems.
2.WD315 9-Cartridge Series
Cylinder diameter: 315 mm; inlet and outlet port size: 88.9/90. Each unit can be equipped with 9 PP cotton filter cartridges for higher water throughput. Maximum working pressure: 0.6 MPa.
WD315-10: Height 505 mm, compatible with 10-inch cartridges
WD315-20: Height 760 mm, compatible with 20-inch cartridges
WD315-30: Height 1000 mm, compatible with 30-inch cartridges
WD315-40: Height 1270 mm, compatible with 40-inch cartridges
A reserved mounting position for pressure relief valve is set on the top of the equipment. It will automatically release pressure when pressure exceeds 5 kg, suitable for high-flow industrial circulating water and chemical tank liquid filtration applications.
Ⅱ.Equipment Structure & Design Features
Central Bottom Water Distribution Structure
Water flows upward evenly from the central bottom of the tank, reducing hydraulic impact resistance on filter cartridges. A vent valve is installed at the tank top to discharge accumulated air inside the vessel.
Integrated Press Plate for Easy Cartridge Replacement
The base plate and top press plate adopt an integrated design. No extra positioning adjustment for cartridges is needed after opening the top cover, simplifying installation and replacement procedures.
A reserved G1/4 threaded port is set on the top cover for mounting vent valves and pressure gauges. Adapters are available for purchase separately if metric pressure gauges are required.
Pressure Relief Safety Configuration
The 9-cartridge model allows installation of a pressure relief valve on the tank top, which automatically relieves overpressure to ensure stable equipment operation.
Stable Operating Parameters
Max operating temperature: 45°C; rated maximum working pressure: 0.6 MPa.
The UPVC cylinder is rust-proof with zero metal leaching, making it applicable for food-related water treatment processes.
Ⅲ.Applicable Industries & Application Fields
✅ Filtration of acid and alkaline solutions in food chemical industry
✅ Precision filtration of electroplating & surface treatment chemical liquids
✅ Pretreatment for cooling tower circulating water and reclaimed water reuse
✅ Security pre-filtration for ultrafiltration, nanofiltration and reverse osmosis systems
✅ Purification of corrosive liquids in laboratories
✅ Impurity interception for chemical cleaning water and additive solutions
Ⅳ.Core Product Features
Excellent Corrosion Resistance
The whole unit is made of UPVC, suitable for water environments containing acids and alkalis.
Diversified Specification Options
Two series including 5-cartridge and 9-cartridge models, compatible with 10–40 inch filter cartridges to meet different flow rate demands.
Easy Maintenance & Operation
Integrated press plate design eliminates repeated alignment during cartridge replacement.
Safe & Controllable Operation
Reserved ports for vent valves and pressure gauges; optional automatic pressure relief valve for real-time tank pressure monitoring.
Universal Consumables
Compatible with standard PP melt-blown cartridges available on the market, with optional filtration precision ranging from 1μm to 100μm for easy consumable procurement.
Ⅴ.Guide for Model Selection
If the on-site water contains corrosive media such as acids, alkalis and salts, this vertical UPVC filter is recommended for your reference.
You may select the corresponding model according to the on-site treatment flow rate, required cartridge length and pipeline port size. Please consult our staff if you need support on parameter selection.
